FOR SALE:

Gen 6 Camaro Radius Rods With BMR Spherical Bearings
I used these on my Gen5 '14 SS 1LE and Gen6 '22 SS 1LE.

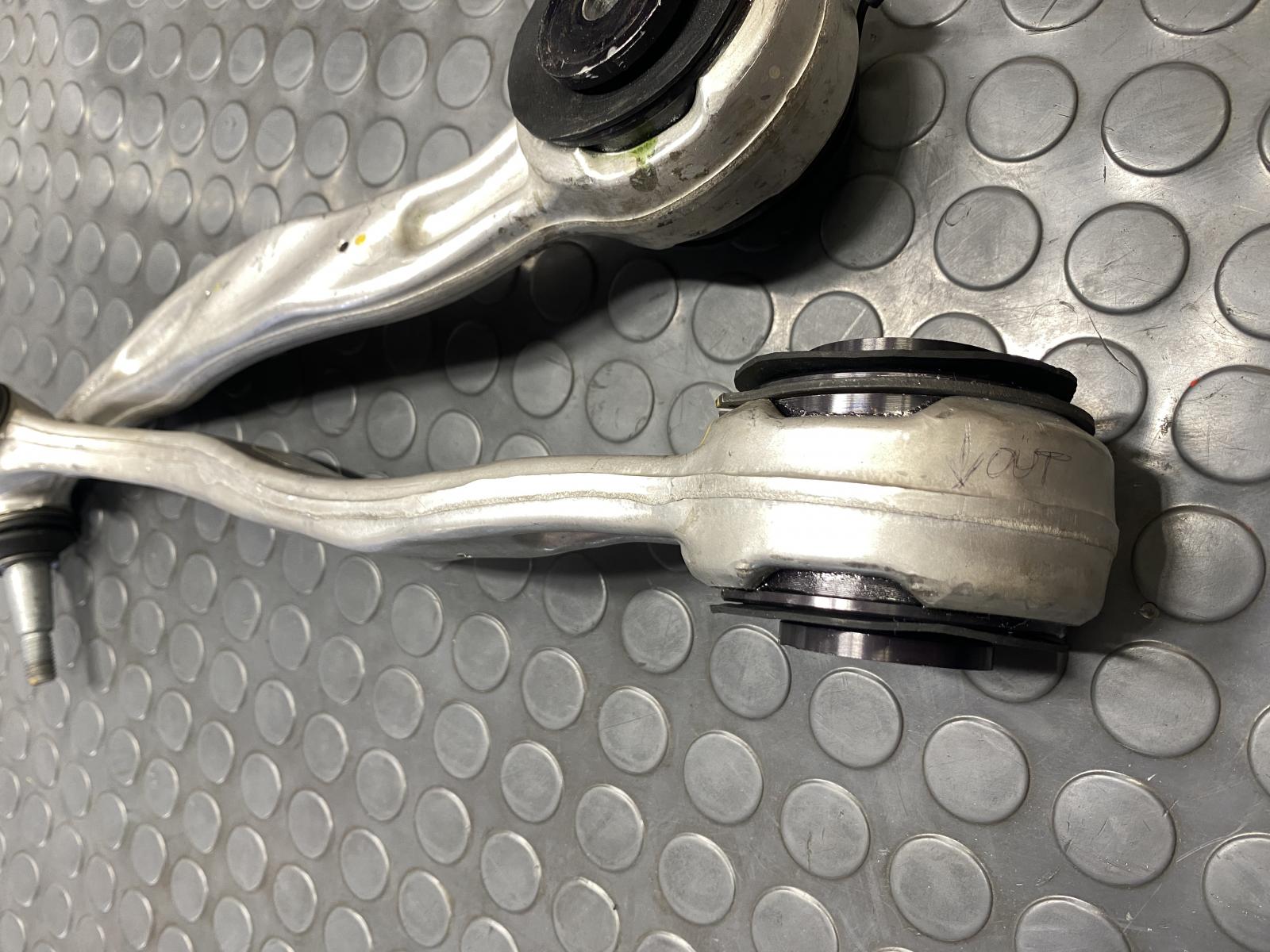

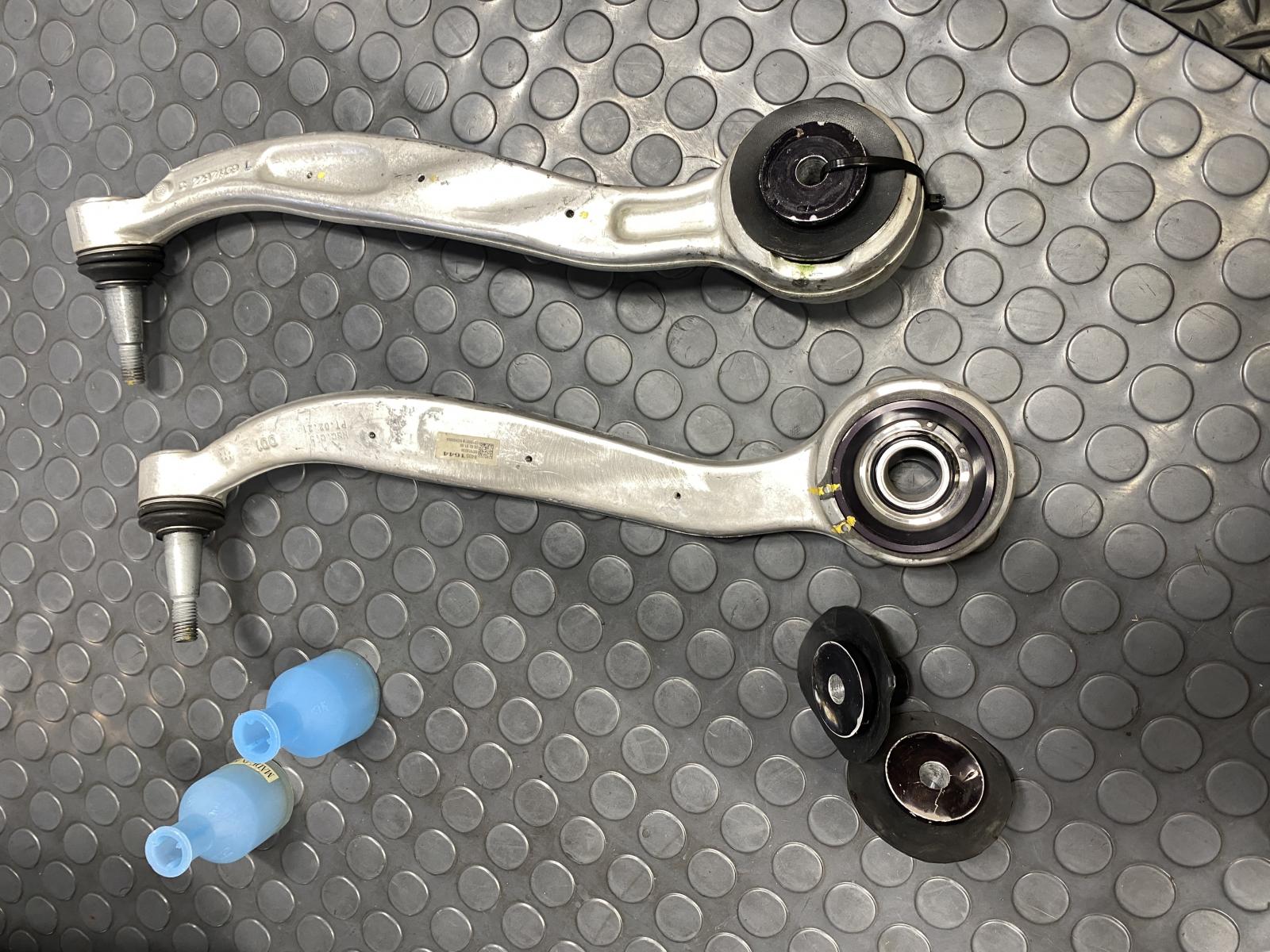

These are the Gen6 Camaro SS 1LE front (radius rod) diagonal arms (part #s 84051641/42) with the BMR sphericals installed (part # BK070). But I drilled out the BMR spherical spacers to accept the larger Gen5 OE 14mm bolt when I used them on my previously owned Gen5 SS 1LE. NHV is a little higher with these solid joints. I also made rubber protectors to help keep dirt away from the sherical bearings. Purchasing all the components new is about $500-600 depending on which Gen6 arm you would start off with.

The larger modified 14mm ID of the BMR bearing spacers requires use of the Gen5 Camaro radius rod bolts, part # 11561302 and matching nut, # 11516382. Two of each needed. The mounting holes on the aluminum cradle will also need enlarged for the larger 14mm bolt.

https://www.bmrsuspension.com/?page=...productid=1686

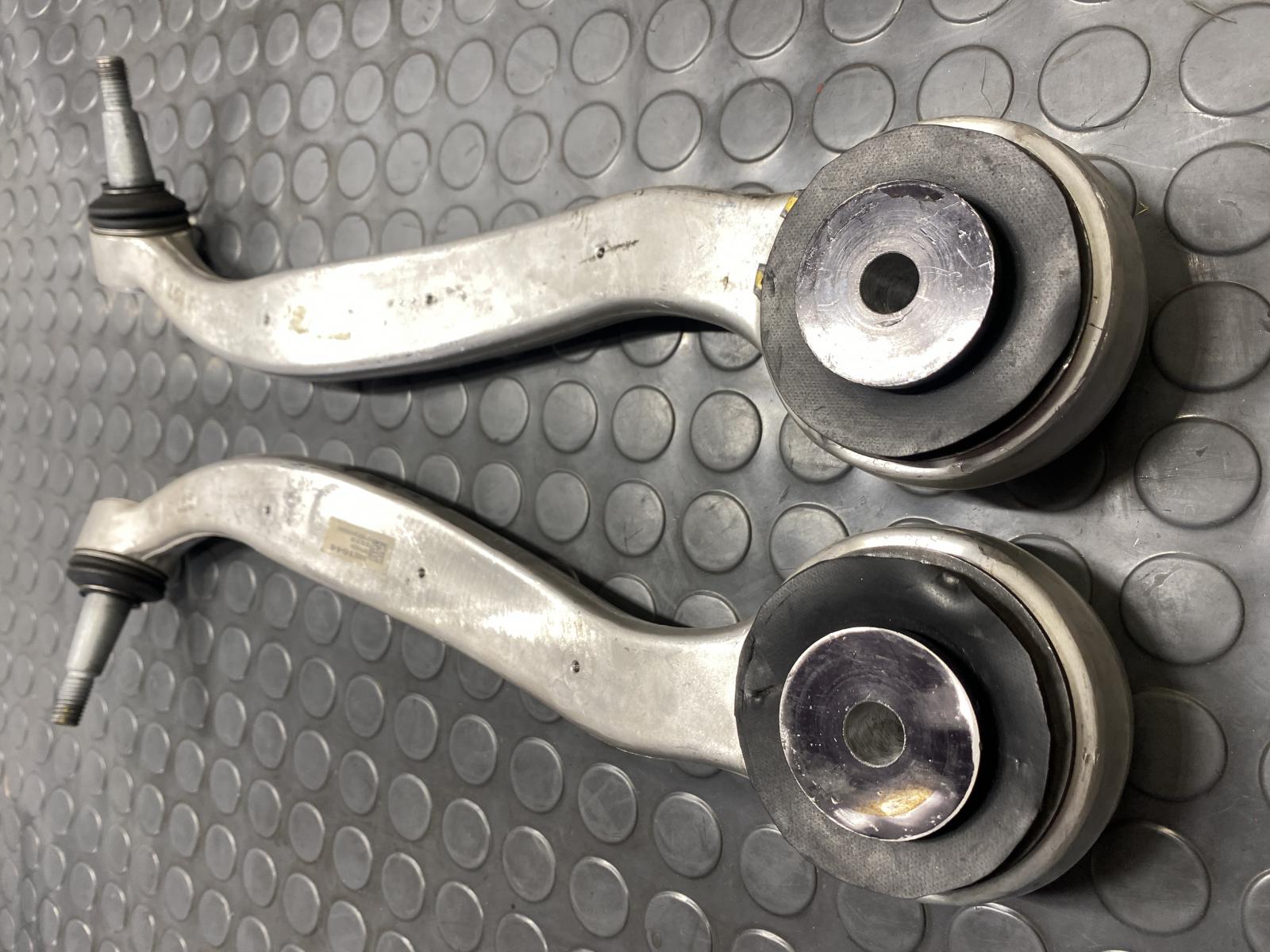

I will also throw in the OE bushings that I pressed out of these arms when I swapped in the BMR bearings.


$300 Shipped to CONUS, PayPal only. If interested PM me here on the forums.
