2017 ZL1 Convertible Audio Upgrade

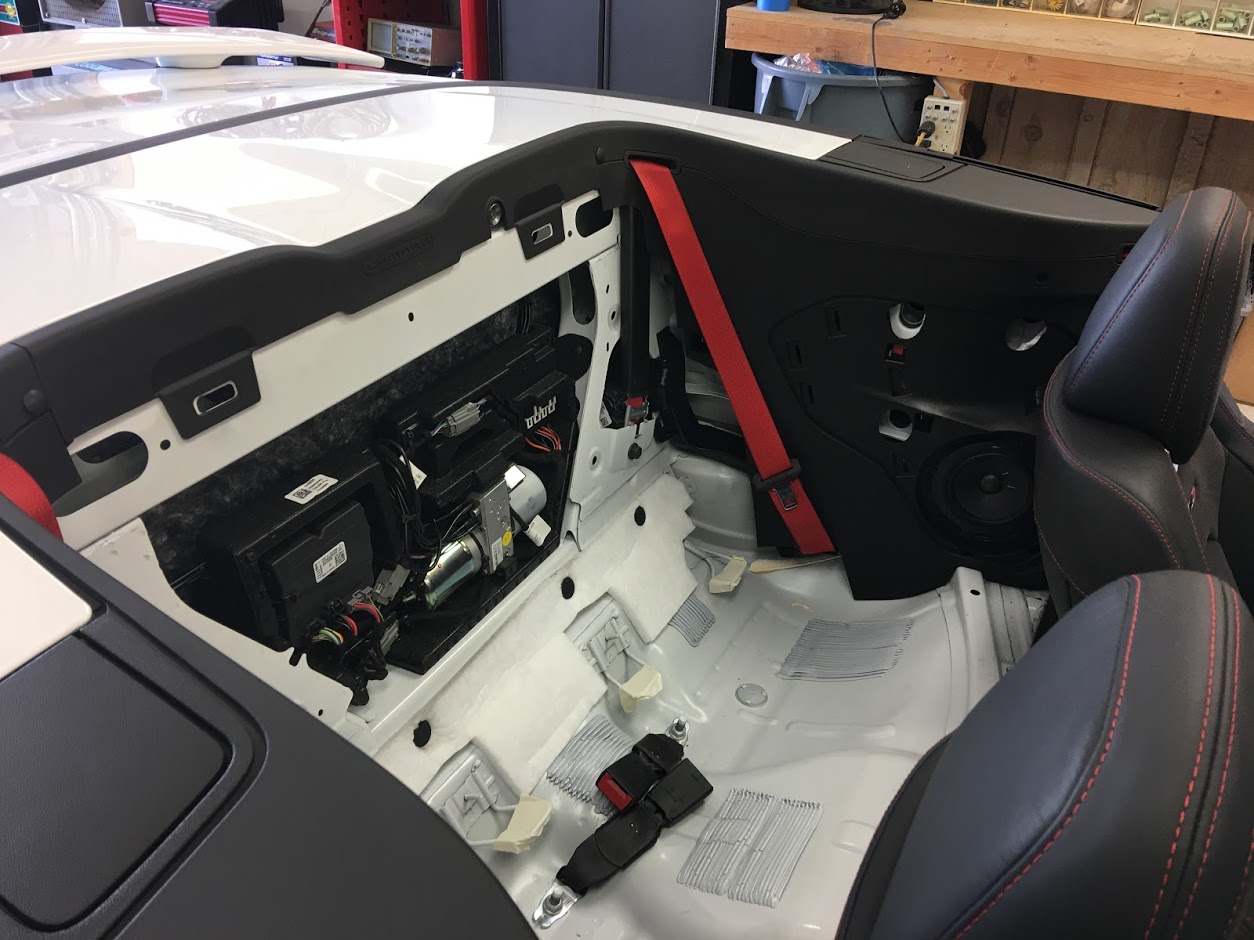

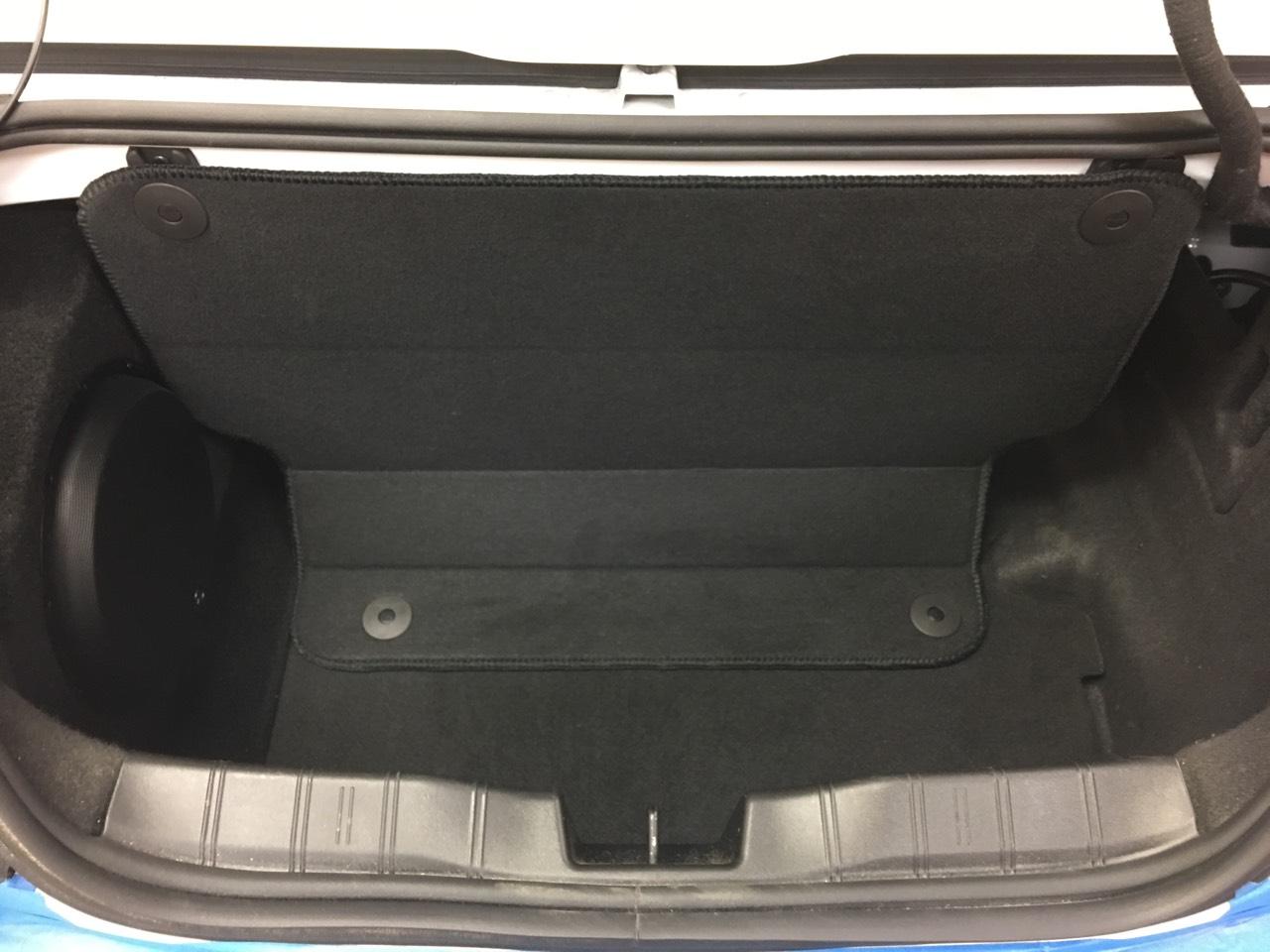

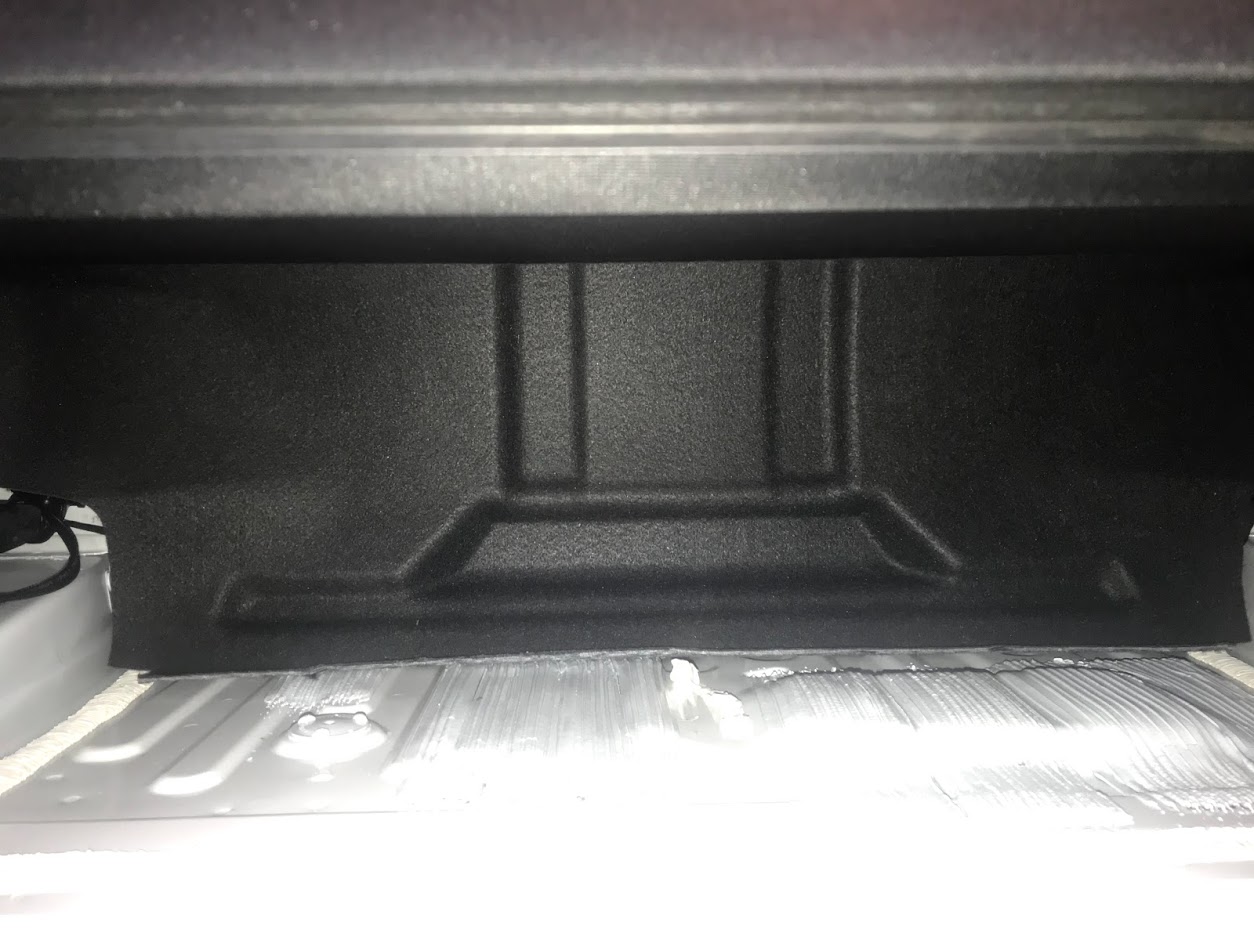

Ok folks, so here are some pics of the audio build. We are 90+% finished. as mentioned in another thread, creating the custom subwoofer with the limited space in the convertible has proven to take the most time.

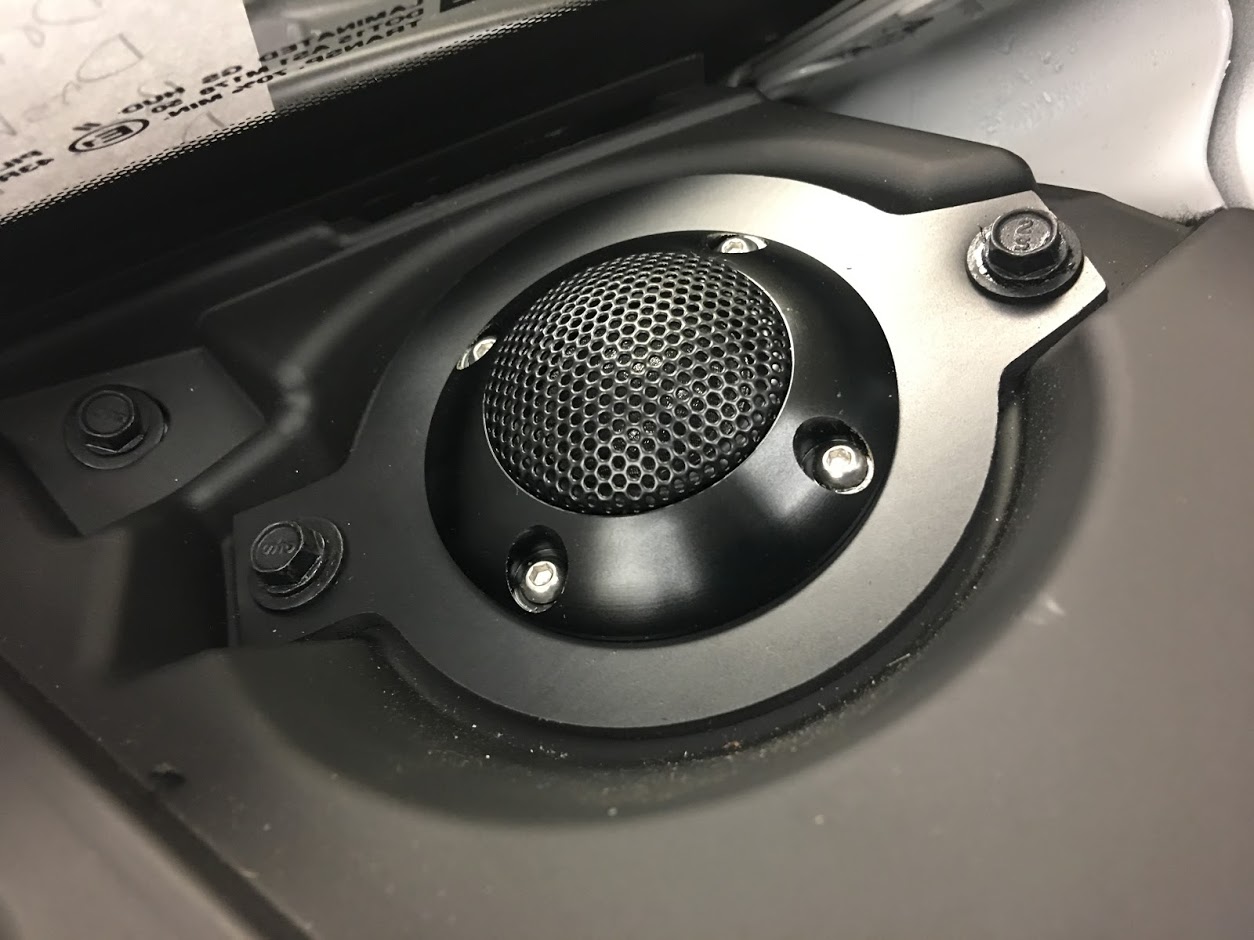

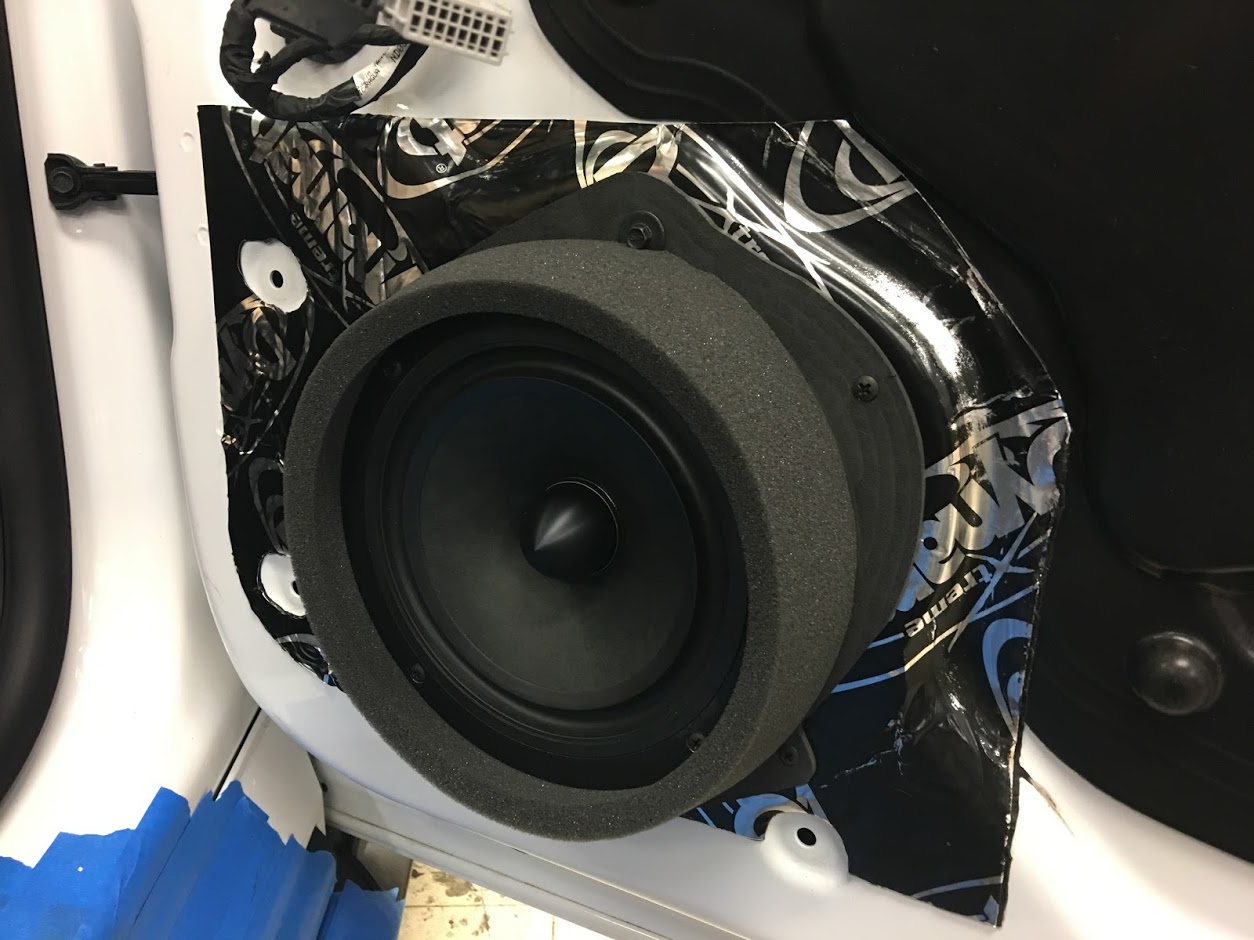

Front stage: Hybrid Audio technologies Legatia L1V2 tweeters Hybrid Audio technologies Legatia L6SE midbass/midrange Hybrid Audio technologies L2x crossover Processors: NAV-TV’s M650-GM processor Hertz H8 processor Rear fill: Hybrid Audio technologies Imagine 6.5' coaxial Amplifer: Hybrid Audio technologies Unity U5A 5 channel amplifier Subwoofer: JL Audio W6V3 in custom fiberglass box Misc: Batcap 400 Mobile Video Integration (MVI) Video In motion Module Flash
__________________
'17 White ZL1 A10 Convertible - TM ported TB - RotoFab CAI - 2.3" griptech upper pulley - Kooks 1 7/8" Headers with High Flow Cats - Borla S-type Catback - Audio Overhaul - NavTV M650-GM - 20" BlackDiForza- Michelin Pilot Sport4S - Tuned at BRC Raceworks (606rwhp/675trq)
'14 CTS-V Coupe - ZL1 lid - Ported TB - Ported Snout - AirRad CAI - 8.66" lower - 2.55" upper- Greenbelt - SW Headers - SW Catback - Varimax Intercooler Pump - Track Attack Intercooler-Tuned at BRC Raceworks (551rwhp/516trq) '17 Maserati Levante- STOCK Last edited by drfeelgood; 12-29-2017 at 11:44 AM. Reason: image linking |
11-16-2017, 05:11 PM | #2 |
Drives: 2017 2SS Vert Fifty Join Date: Dec 2012
Location: Atlanta, GA
Posts: 19
|
clean build.. how much did it dent your pockets?? I want something nice in my convertible.. trying to figure out if a can fit 2 8 inch subs in the back somewhere..
maybe even take out the back fill speakers and build something into that panel.. |
11-16-2017, 11:09 PM | #3 |
Did your shop hook up with mine for the sub box specs?
|
|
11-24-2017, 12:26 PM | #4 |
Drives: 2017 ZL1 Convertible A10 Join Date: Aug 2017
Location: San Gabriel, CA
Posts: 992
|
no, he just did his own. He built it slightly different but in the same place.
__________________
'17 White ZL1 A10 Convertible - TM ported TB - RotoFab CAI - 2.3" griptech upper pulley - Kooks 1 7/8" Headers with High Flow Cats - Borla S-type Catback - Audio Overhaul - NavTV M650-GM - 20" BlackDiForza- Michelin Pilot Sport4S - Tuned at BRC Raceworks (606rwhp/675trq)
'14 CTS-V Coupe - ZL1 lid - Ported TB - Ported Snout - AirRad CAI - 8.66" lower - 2.55" upper- Greenbelt - SW Headers - SW Catback - Varimax Intercooler Pump - Track Attack Intercooler-Tuned at BRC Raceworks (551rwhp/516trq) '17 Maserati Levante- STOCK |
11-24-2017, 12:28 PM | #5 | |
Drives: 2017 ZL1 Convertible A10 Join Date: Aug 2017
Location: San Gabriel, CA
Posts: 992
|
Quote:
final cost with labor was a little over $7,000
__________________
'17 White ZL1 A10 Convertible - TM ported TB - RotoFab CAI - 2.3" griptech upper pulley - Kooks 1 7/8" Headers with High Flow Cats - Borla S-type Catback - Audio Overhaul - NavTV M650-GM - 20" BlackDiForza- Michelin Pilot Sport4S - Tuned at BRC Raceworks (606rwhp/675trq)
'14 CTS-V Coupe - ZL1 lid - Ported TB - Ported Snout - AirRad CAI - 8.66" lower - 2.55" upper- Greenbelt - SW Headers - SW Catback - Varimax Intercooler Pump - Track Attack Intercooler-Tuned at BRC Raceworks (551rwhp/516trq) '17 Maserati Levante- STOCK |
|
11-27-2017, 11:25 AM | #6 |
That came out very nice!
|
|
11-27-2017, 05:02 PM | #7 |
Drives: 2023 2SS Convertible Join Date: May 2009
Location: Metro Detroit
Posts: 1,062
|
Somebody just needs to start mass producing that sub box already! Looks awesome!
-Geoff
__________________
'12 2SS RS Convertible - Traded in.
'16 2SS Convertible - White on white, mag-ride, NPP, nav. Sold! '23 2SS Convertible -Same as above except orange. |
11-28-2017, 09:27 AM | #8 |
Drives: '16 vert 2LT RS NPP Join Date: Jun 2012
Location: Northwest Indiana
Posts: 344
|
Did I miss something? Where's the M650-GM? Does it go behind the tuner and not the amp?
|
11-30-2017, 12:22 PM | #9 |
Drives: 2017 ZL1 Convertible A10 Join Date: Aug 2017
Location: San Gabriel, CA
Posts: 992
|
yes, it connects directly to the back of the headunit, you can then run fiber optic cable back to the sound processor. All door dings, chimes, back up warning beeps, etc still work fine and I did not have to disconnect any of the door mics, nor the input to the factory amp.
__________________
'17 White ZL1 A10 Convertible - TM ported TB - RotoFab CAI - 2.3" griptech upper pulley - Kooks 1 7/8" Headers with High Flow Cats - Borla S-type Catback - Audio Overhaul - NavTV M650-GM - 20" BlackDiForza- Michelin Pilot Sport4S - Tuned at BRC Raceworks (606rwhp/675trq)
'14 CTS-V Coupe - ZL1 lid - Ported TB - Ported Snout - AirRad CAI - 8.66" lower - 2.55" upper- Greenbelt - SW Headers - SW Catback - Varimax Intercooler Pump - Track Attack Intercooler-Tuned at BRC Raceworks (551rwhp/516trq) '17 Maserati Levante- STOCK |
12-24-2017, 02:40 PM | #10 |
Drives: 2017 2LT Garnet Red Join Date: Dec 2011
Location: Streamwood, IL
Posts: 125
|
The M650-GM is the best way to go for a Camaro IMO, and I would suggest using the Tosh fiber optic into a JL TwK D8, that way you have full control of the sound and then a solid amp for the front & rear speakers and a sub amp. I choose the Alpine PDXF6 150 watts per channel constant current so the ohm of the speakers don't change output wattage. I choose the RF Prime 750 for $200 can't be beat and once the gain is set wow... I also choose 2 JL Audio 12TW3-D4 12 for the subs and I made a smaller box and get strong bass but making a bit larger and expect even more bass. But what important is setting the amps gain right and get 1 of Steve Meads DD-1+ meter and now blow out the JL subs and still have full trunk space for stuff and still clears the convertible top! This, in my opinion, is not needed to pay someone 2K to install as long you have the tools and knowledge to setup it all up. The only issue was the M650-GM as it needs to be mounted on the side of the glove box and that is where I gave up more than I could do without videos to help so I took it to a pro shop. Christopher P.S Most important is the choice of music and how good is the recording is the MOST important part I found in this process.
|
12-28-2017, 05:58 AM | #11 | |
Drives: 2017 ZL1 Convertible A10 Join Date: Aug 2017
Location: San Gabriel, CA
Posts: 992
|
Quote:
Audison BitPlay HD Audison BitOne Audison Voce AV5.1K HD (5 channel) (front stage , center channel, and sub) Audison Voce AV Quattro (4 channel) (bridged to midbass) HertzHCP2 (rear fill) Hybrid Audio Technologies (HAT) driver: Legatia L1 Pro R2 tweeters Legatia L3SE 3.7" center channel Legatia L3SE 3.7" left and fright mid range Legatia L8Se 8.85" midbass 2 x JL Audio W6 in cabin facing sealed box I can run FLAC files through the BitPlayHD for the absolute highest possible audio quality, digital source > digital sound processor> digital amps >to speakers. I'm not sure if you are familiar with FLAC, but it's a lossless audio codec, only problem is most audio systems can't play these files (the bitplayHD can, and the new iphones and ipads running ios11 can also) Right now, the system has dual connections into the bitone. digital input from the bitplay using the toslink fiber optic. High level inputs from the factory amp. We re considering going back, and installing the M650-GM, so that the entire system is fully digital.
